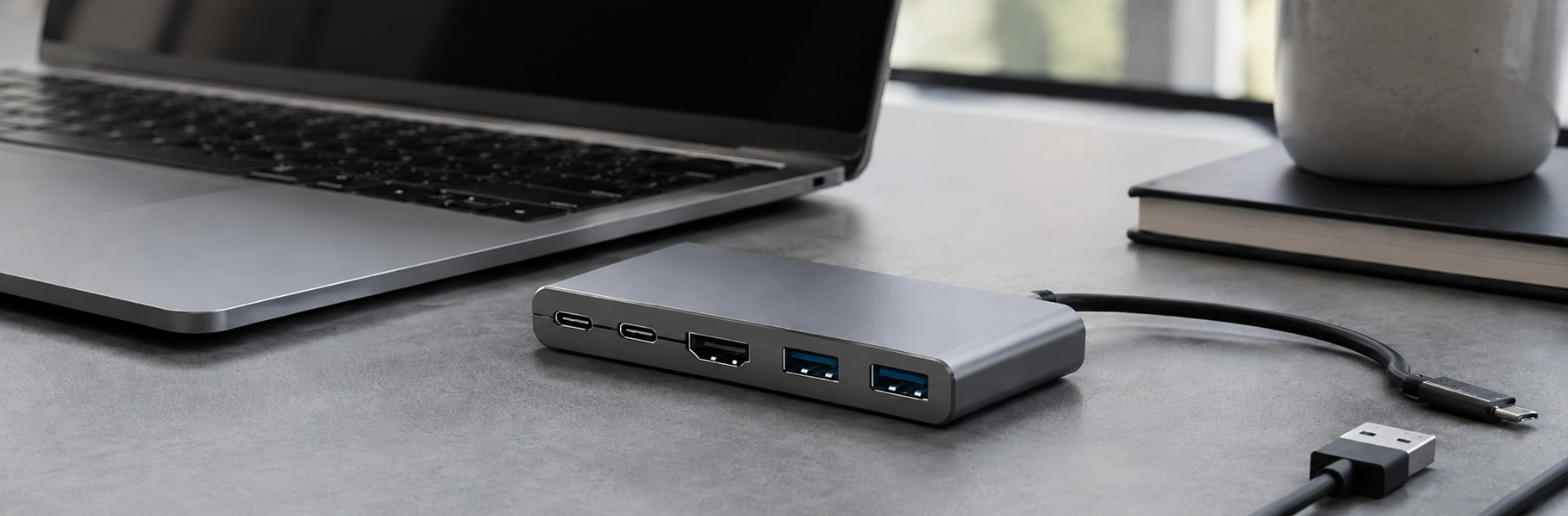

What Is a USB-C Adapter?

A USB-C adapter is a device that connects a USB-C port to a different type of connector, such as HDMI, USB-A, Ethernet, VGA, or an SD card slot. It allows a laptop, tablet, or phone with a USB-C port to work with equipment that uses a different connection standard. Adapters come in three common form factors: a compact dongle, a short cable with different connectors on each end, or a small multiport unit.

Most USB-C adapters convert in one direction: from the USB-C port on your device to the target connector on the peripheral. Some also work in reverse — for example, a USB-A to USB-C adapter lets you plug a USB-C cable into an older computer that only has USB-A ports.

The need for adapters comes from a hardware gap. Many modern laptops ship with only USB-C ports, while monitors, projectors, flash drives, wired networks, and older peripherals still rely on HDMI, USB-A, Ethernet, and other legacy connectors. A USB-C adapter bridges that gap without replacing any equipment.

How Does a USB-C Adapter Work?

A USB-C adapter works by routing signals between the pins of the USB-C connector and the pins of the target connector. The USB-C port carries multiple signal types — data, video, and power — over a single 24-pin connector, and the adapter maps the relevant lines to the format the connected device expects.

Video output relies on a feature called DisplayPort Alternate Mode (DP Alt Mode). In this mode, the device sends a native DisplayPort video signal through the USB-C port, and the adapter passes it to an HDMI, DisplayPort, or VGA output. If the device's USB-C port does not support DP Alt Mode, a video adapter connected to it will not work.

Adapters are either passive or active. A passive adapter simply rewires the connection and works when both sides use compatible signaling, such as USB-C to DisplayPort. An active adapter contains a chip that converts the signal from one protocol to another, which is required for conversions like DisplayPort to VGA or HDMI at higher resolutions.

Many multiport adapters also support passthrough charging via USB Power Delivery (PD). This means the adapter has its own USB-C power input: you plug the charger into the adapter, and it powers the laptop while its other ports remain in use.

Types of USB-C Adapters

USB-C adapters are classified by the target connector they provide. The table below covers the most common types and their uses.

A multiport adapter combines several of these conversions in a single device. A typical example is a 7-in-1 USB-C hub with 4K HDMI output, which adds HDMI, USB-A ports, and card readers to a laptop through one USB-C connection.

Single-purpose adapters are smaller and cheaper, while multiport units replace several individual adapters at once. The right type depends on how many legacy connections you need simultaneously.

What Can You Do With a USB-C Adapter?

A USB-C adapter extends a device with connections it does not have built in. Each of the tasks below is handled by a specific adapter type, and a multiport model can cover several of them at once.

Connect an External Display

A USB-C to HDMI or DisplayPort adapter outputs video to a monitor, TV, or projector at up to 4K resolution, depending on the adapter's specification. This is the most common reason to buy a USB-C adapter for a modern laptop.

Use USB-A Peripherals

Flash drives, external hard drives, mice, keyboards, webcams, and printers with USB-A plugs connect through a USB-C to USB-A adapter. This keeps older peripherals fully usable on laptops that ship with USB-C ports only.

Get Wired Internet

A USB-C to Ethernet adapter provides a stable wired network connection on laptops that lack an Ethernet port. Wired connections are preferable for video calls, large file transfers, and offices where Wi-Fi is congested.

Charge While Working

Multiport adapters with Power Delivery passthrough charge the laptop through the same port that handles video and data. You plug the charger into the adapter's power input, and the laptop receives power without occupying a second port.

Transfer Files From Memory Cards

An SD or microSD card reader in an adapter imports photos and video from cameras and drones without a separate reader. Card slots are standard on most multiport adapters.

One adapter can serve several of these tasks at once if it is a multiport model. This is why multiport adapters have become the default choice for laptops with limited ports.

USB-C Adapter vs. Hub vs. Docking Station

A USB-C adapter converts one connection type to another; a hub splits one USB-C port into several ports; a docking station is a powered hub that turns a laptop into a full desktop workstation. The three terms overlap in everyday use, but the devices differ in scale and capability.

An adapter is the simplest of the three. It typically handles one conversion — USB-C to HDMI, USB-C to Ethernet — draws no external power, and fits in a pocket.

A hub expands a single USB-C port into multiple ports of different types. Most hubs are bus-powered, meaning they draw power from the laptop itself, though models like the ConnectHub Pro 7-in-1 with 100W Power Delivery accept a charger through a dedicated USB-C input and pass power back to the laptop while all ports remain active.

A docking station is the most capable option. It offers the widest selection of ports, supports one or more external displays, and usually delivers enough power to charge a laptop at full speed. A high-end example is the DockHub Pro 15-in-1 with dual HDMI outputs, which connects two 4K monitors and a dozen peripherals to the laptop via a single USB-C cable.

How to Choose a USB-C Adapter

The first criterion is the compatibility of your device's USB-C port. For video output, the port must support DisplayPort Alt Mode; for charging through the adapter, it must support USB Power Delivery. Both are listed in the device's specifications, and their absence cannot be fixed by any adapter.

Video Specification

Check the maximum resolution and refresh rate of the adapter's video output. "4K" alone may mean 4K at 30Hz, which is noticeably less smooth than 4K at 60Hz for desktop work. For a primary monitor, choose an adapter rated for 4K@60Hz.

Power Delivery Wattage

For passthrough charging, the adapter's PD rating should match or exceed your laptop's charger. A 100W PD input covers nearly all laptops, including 16-inch performance models. An underpowered adapter will charge slowly or drain the battery under heavy load.

Data Transfer Speed

USB 2.0 ports (480 Mbps) are fine for keyboards and mice but slow for external drives. For storage devices, look for USB 3.0/3.2 ports rated at 5–10 Gbps. Check the speed of each port individually — many adapters combine fast and slow ports in a single housing.

Port Count and Layout

Count the connections you actually use daily and add one spare. For a fixed office setup with two monitors and wired internet, a 12-port unit such as the DockHub Office 12-in-1 with 100W PD powers a full workstation via a single cable.

Build Quality and Certification

FCC and CE certification, an aluminum housing for heat dissipation, and a manufacturer's warranty indicate an adapter built for daily use. Avoid uncertified no-name adapters: poorly built units can overheat, throttle data speeds, or deliver unstable power that damages connected devices.

USB-C Adapters at a Glance

• A USB-C adapter connects a USB-C port to a different connector type — HDMI, USB-A, Ethernet, VGA, audio, or memory cards.
• Video output requires DisplayPort Alt Mode, and charging requires Power Delivery support in the device's USB-C port; no adapter can add these features.
• Adapters handle single conversions, hubs expand one port into several, and docking stations power a complete desk setup.
• When choosing, verify port compatibility first, then match the video specification, PD wattage, data speed, and port count to your actual use.
